Rear brake question

Post Sat Nov 21, 2020 3:05 am

Posts: 70
If I wanted to run a changeable sprocket on the right ride and move the drum to the left on a K model does anyone have an easy way of doing it?

Thanks
Dave

Post Sat Nov 21, 2020 11:41 am

Posts: 1380
Location: Ojo Caliente,NM,USA
I would measure from the center of the rim to the sprocket then go to the scrap yard. I would also consider a disk brake since they are more readily available anymore.

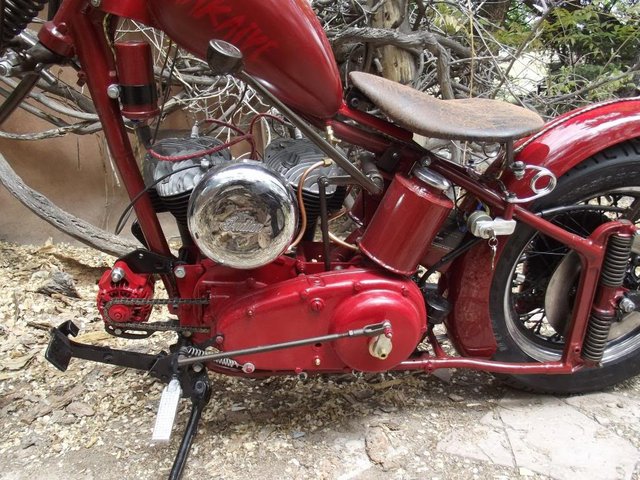

A Sporty rear with a Honda brake on the rear of a Indian Vertical Twin with a 741 engine. With a hammer, torch and a lathe you can put most anything anywhere!
Dusty

Post Sat Nov 21, 2020 2:11 pm

Posts: 70
Thanks Dave. It’s for a race bike so I need to run a drum

Post Sat Nov 21, 2020 6:03 pm

Posts: 1380
Location: Ojo Caliente,NM,USA
Still lots of jap bike rears with drums out there for cheap. If you can start out with the right offset it is way easier. On a spoked wheel it's usually possible to move the rim 1/2" or so either way without new spokes. To get the Sporty wheel in the Indian frame I had to make an offset sprocket way easier if the offset is close to start with.
Dusty
