Odd Late 1960's Big Twin Servicar Headlight Bucket Terminal

Pretty much anything not covered by the topics above. Short lived production bikes or vehicles, Electrical, Tires, Paint, Brakes, etc. Use this for tech questions, and "Shoot the Bull" for general conversation, no tech.
Pa Site Admin

Posts: 6223
Location: Ohio USA

Anyone ever seen this type of terminal headlight bucket terminal board on a late 1960's Big Twin or Servi-car ? The terminal board has an additional factory terminal post stamped #32. All my wiring schematics show a #31 as the highest terminal post number. I have inserted a drawing showing this #32 terminal post and its location in relation to the other terminal posts.


Pa Site Admin

Posts: 6223
Location: Ohio USA

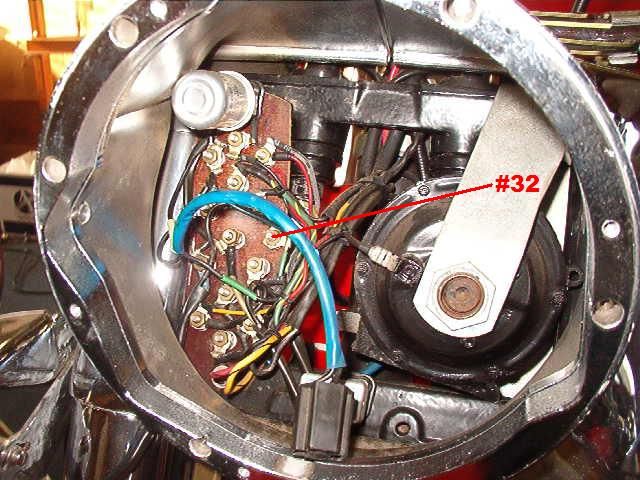

Here is a photo of the actual Police bike headlight bucket terminal board. I have marked the number 32 terminal post. Note how the wiring is also completely different from the service manual schematics in color codes and insulation. This has plastic coated insulation, not cloth insulation. there has been only three owners of the bike since it was built. No wiring has been replaced. Note also the bike has to flashers as well. One flasher is located below the Terminal board at the bottom. The other flasher is mount to the upper left side in the photo of the actual terminal board.
